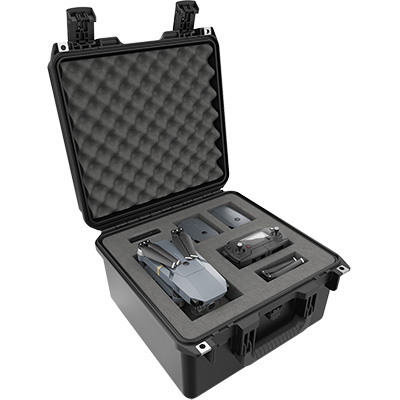

Give your gear extra space. With a deeper lid, the iM2275 is the first case in our Pelican™ Storm Case™ line that gives you more vertical space to work with for your equipment. This case gives you the freedom to configure multiple 4K cameras, diagnostic circuit readers, or a drone with accessories.
- Guaranteed for life
- Two Press & Pull Latches
- Watertight, crushproof, and dustproof
- Vortex™ Valve
- Double-layered, Soft-grip Handle
- Powerful Hinges
- Lightweight Strong HPX® Resin
- Two Padlockable Hasps
Specifications
| EXT LENGTH (in) | 15.25 |
|---|---|
| EXT WIDTH (in) | 15.5 |
| EXT DEPTH (in) | 10.22 |
| INT LENGTH (in) | 14.12 |
| INT WIDTH (in) | 13.19 |
| INT DEPTH (in) | 9.9 |
| LID DEPTH (in) | 3.2 |
| BOTTOM DEPTH (in) | 6.3 |
| WEIGHT WITH FOAM (lbs) | 10.25 |
| WEIGHT NO FOAM (lbs) | 8.0 |
| BODY MATERIAL | Injection Molded HPX™ high performance resin |
| LATCH MATERIAL | Valox – Polybutylene Terephthalate (PBT) |
| O RING MATERIAL | EPDM |
| PINS MATERIAL | Stainless Steel |
| FOAM MATERIAL | 1.3/1.35 polyester |
| PURGE BODY MATERIAL | Valox – Polybutylene Terephthalate (PBT) |
| PURGE VENT MATERIAL | Gortex membrane |
| PURGE O RING MATERIAL | Buna-N, 50-60 Durometer Shore A |
| MIN TEMP (f) | -20.0 |
| MAX TEMP(f) | 140.0 |
| BUOYANCY (lbs) | 68.8 |
Certifications
iM2275 P111 0423RevA
P111 0332RevB Bezel Rail Installation Instructions
Storm IP67 Cert
